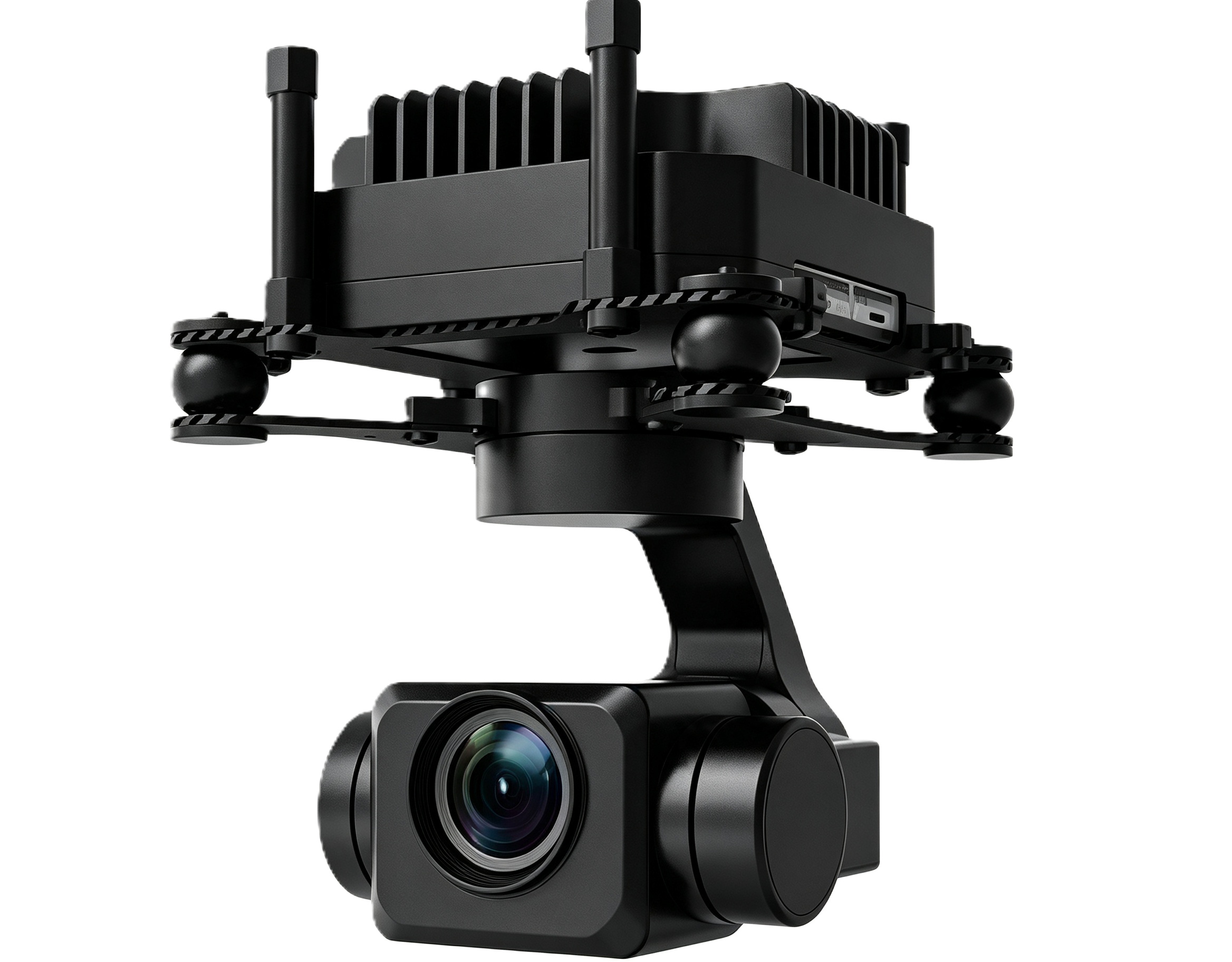

GIM-T1-48 Single-Light Gimbal

The GIM-T1-48 is a lightweight single-light gimbal built for UAV reconnaissance and inspection operations. Integrated with a high-performance 48MP visible light camera, it delivers reliable high-definition reconnaissance performance.

High-precision 3-axis servo stabilization together with intelligent image processing enhances image stability under complex surroundings. Boasting 1~6x digital zoom, it supports field observation missions. Compact 210g lightweight design enables fast installation and convenient integration for various industrial UAV tasks.

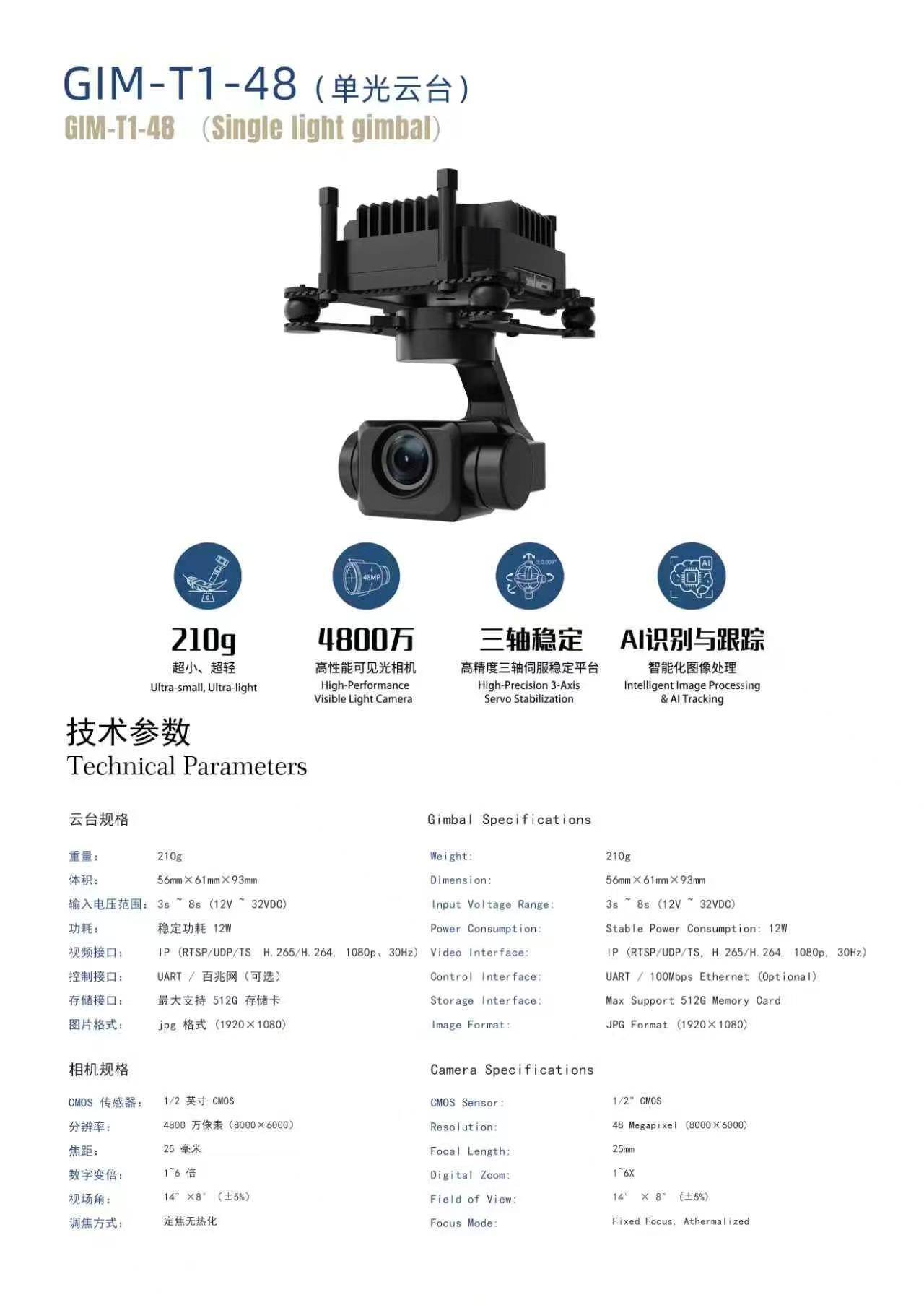

Technical Parameters

Weight: 210g
Dimension: 56mm × 61mm × 93mm
Input Voltage Range: 3s ~ 8s (12V ~ 32VDC)
Power Consumption: 12W
Video Interface: IP (RTSP/UDP/TS, H.265/H.264, 1080p, 30Hz)
Control Interface: UART / 100Mbps Ethernet (Optional)
Storage Interface: Max support 512G memory card
Image Format: JPG (1920×1080)
CMOS Sensor: 1/2 inch CMOS
Resolution: 48 Megapixel (8000×6000)
Focal Length: 25mm
Digital Zoom: 1~6X
Field of View: 14° × 8° (±5%)
Focus Mode: Fixed Focus, Athermalized
