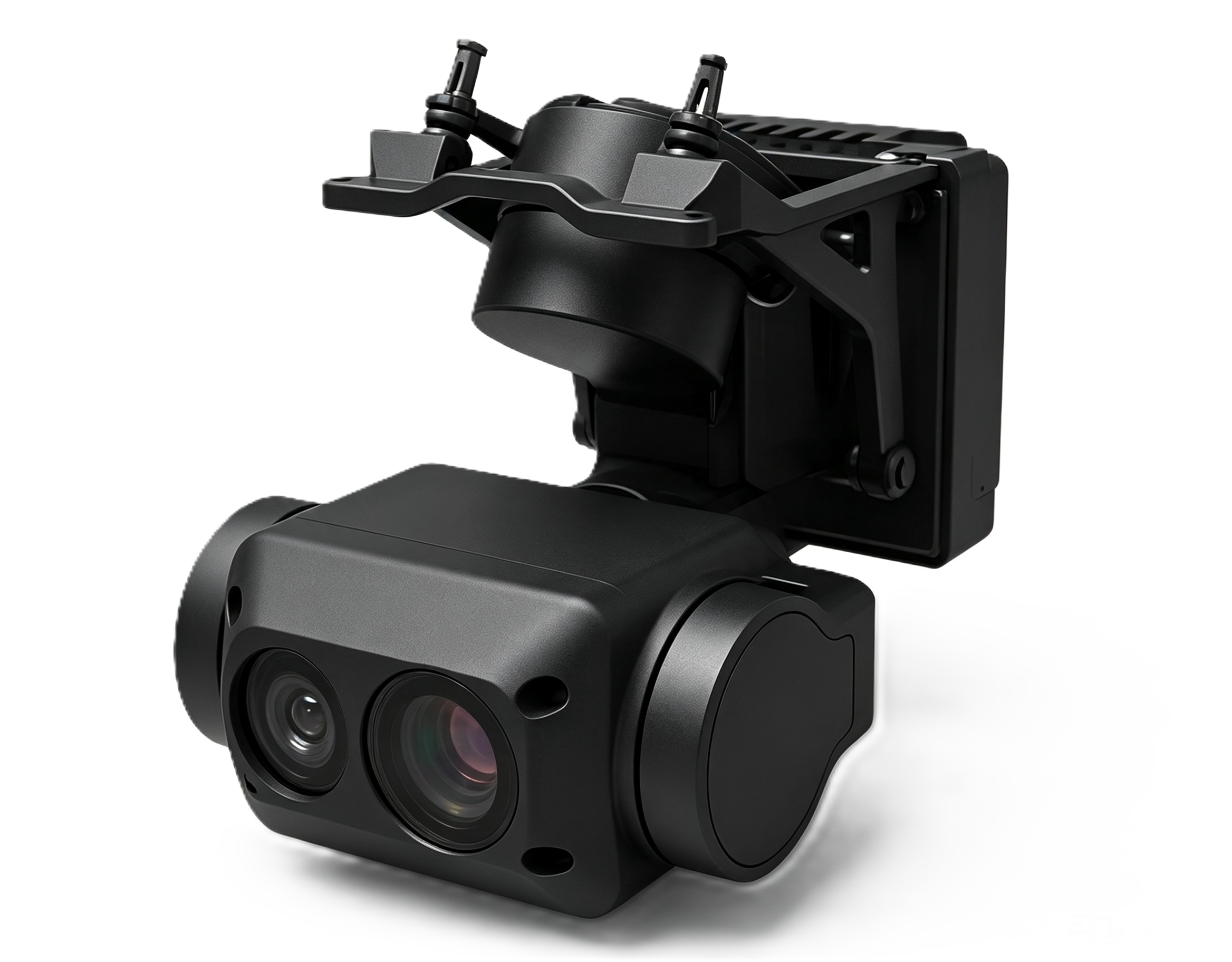

GIM-T2-D48 Dual-Spectral Gimbal

The GIM-T2-D48 is a lightweight dual-spectral gimbal built for UAV reconnaissance and inspection operations. Integrated with 48MP wide-angle and 48MP telephoto cameras, it delivers reliable day-night high-definition reconnaissance performance.

6T AI computing power enhances intelligent target tracking and recognition under complex surroundings. Boasting up to 100x hybrid zoom capability, it supports long-range field observation missions. Compact 150g lightweight design enables fast installation and convenient integration for various industrial UAV tasks.

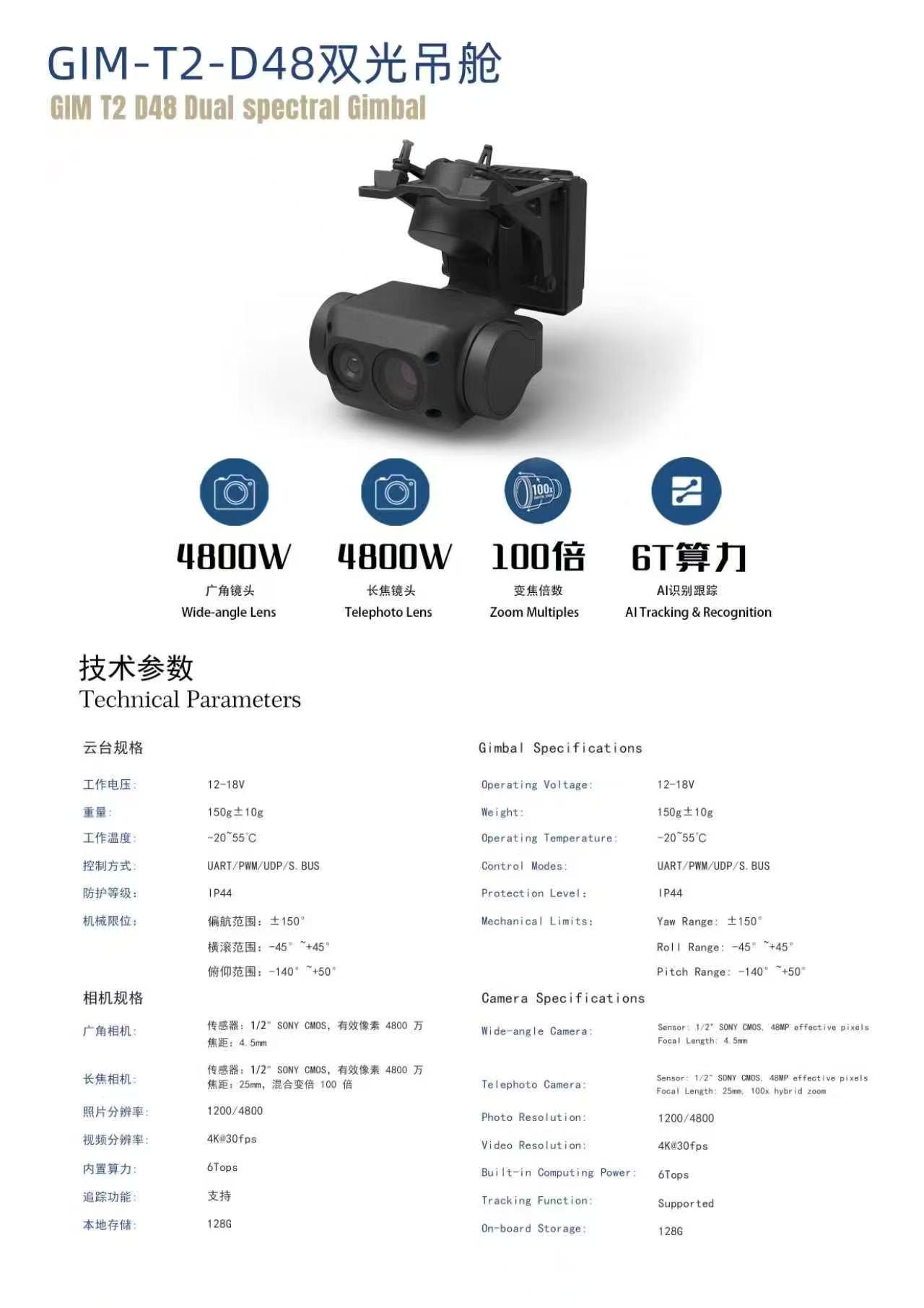

Technical Parameters

Weight: Approximately 150g ±10g
Operating Voltage: 12-18V
Operating Temperature: -20℃ ~ 55℃
Control Modes: UART, PWM, UDP, S.BUS
Protection Level: IP44
Yaw Range: ±150°
Roll Range: -45° ~ +45°
Pitch Range: -140° ~ +50°
Wide-angle Camera: 1/2" SONY CMOS, 48MP effective pixels, 4.5mm focal length
Telephoto Camera: 1/2" SONY CMOS, 48MP effective pixels, 25mm focal length, 100x hybrid zoom
Photo Resolution: 1200 / 4800
Video Resolution: 4K@30fps
Built-in Computing Power: 6Tops
Tracking Function: Supported
On-board Storage: 128G
