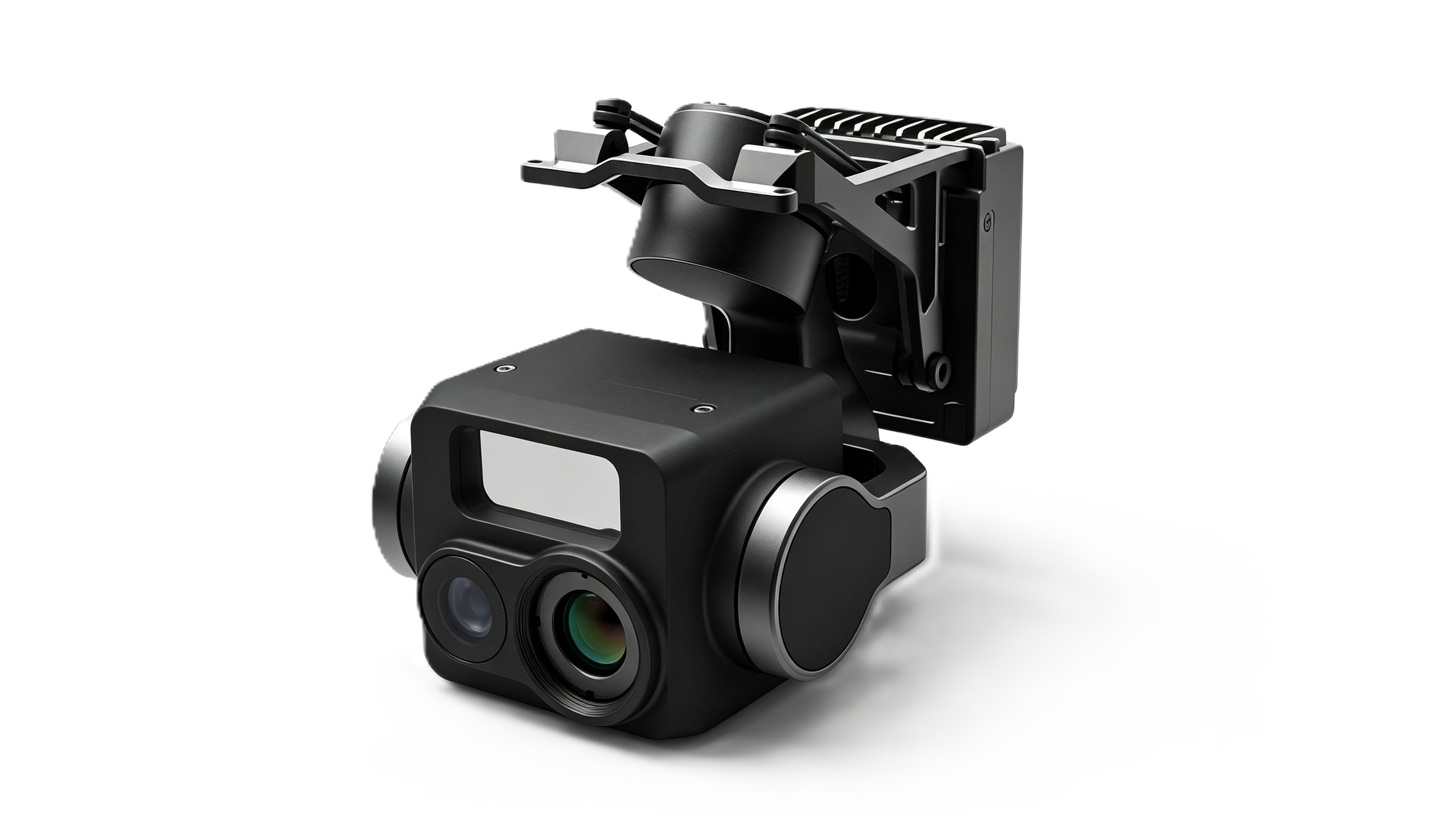

GIM-T3-48 Tri-Spectral Gimbal

The GIM-T3-48 is a lightweight tri-spectral gimbal built for UAV reconnaissance and inspection operations. Integrated with a 640×512 resolution thermal imaging module and 48MP visible-light camera, it delivers reliable day-night multi-spectrum reconnaissance performance.

1500m laser ranging together with 6T AI computing power enhances intelligent target tracking and recognition under complex surroundings. Boasting ultra 4K image resolution, it supports long-range field observation missions. Compact 180g lightweight design enables fast installation and convenient integration for various industrial UAV tasks.

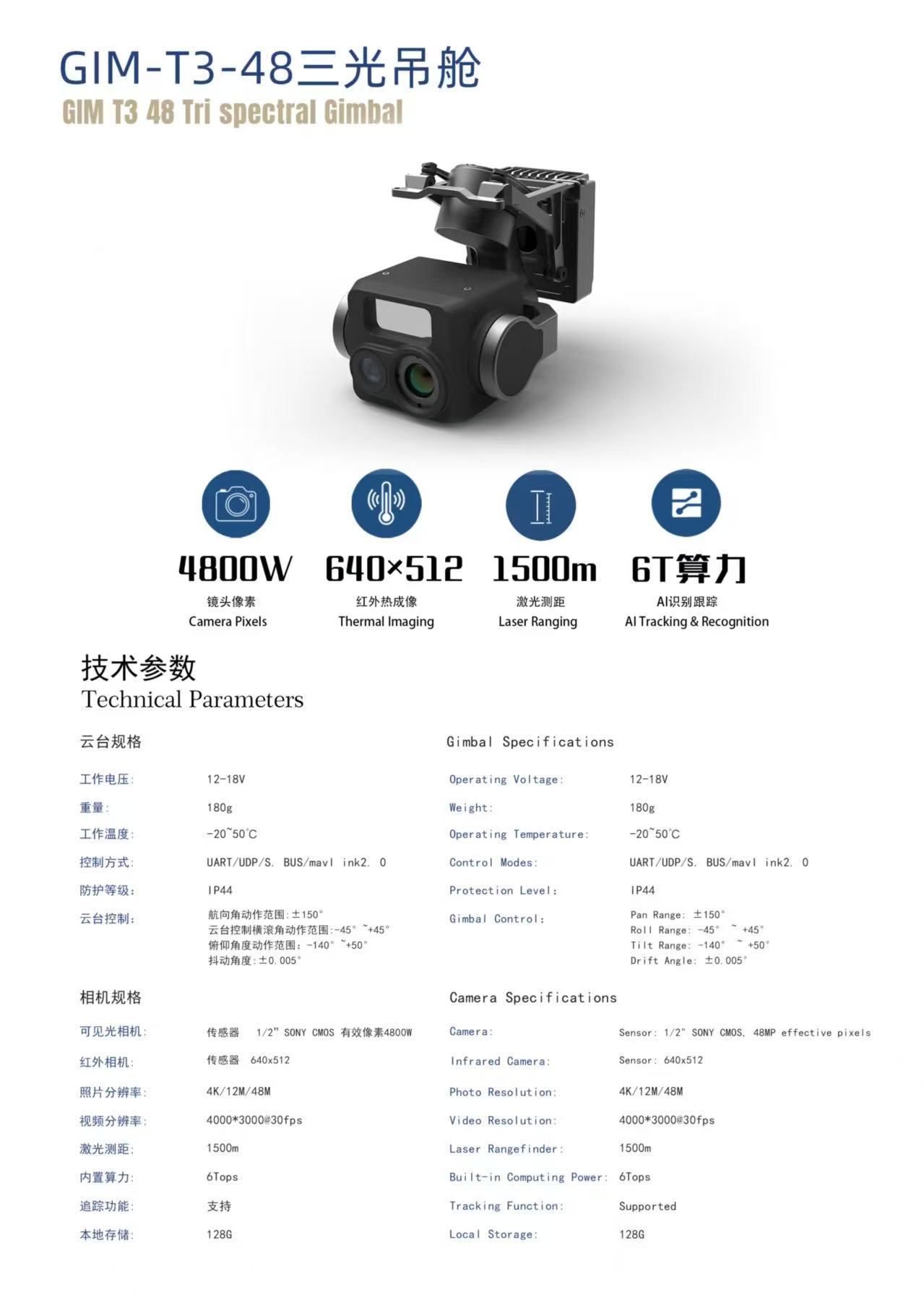

Technical Parameters

Weight: Approximately 180g
Operating Voltage: 12-18V
Operating Temperature: -20℃ ~ 50℃
Control Modes: UART, UDP, S.BUS, MAVlink ink2.0
Protection Level: IP44
Pan Range: ±150°
Roll Range: -45° ~ +45°
Tilt Range: -140° ~ +50°
Drift Angle: ≤0.005°
Visible-light Camera: 1/2" SONY CMOS, 48MP effective pixels
Infrared Camera: 640×512 resolution
Laser Ranging: 1500m
Photo Resolution: 4K /12M /48M
Video Resolution: 4000×3000@30fps
Built-in Computing Power: 6Tops
Tracking Function: Supported
Local Storage: 128G
