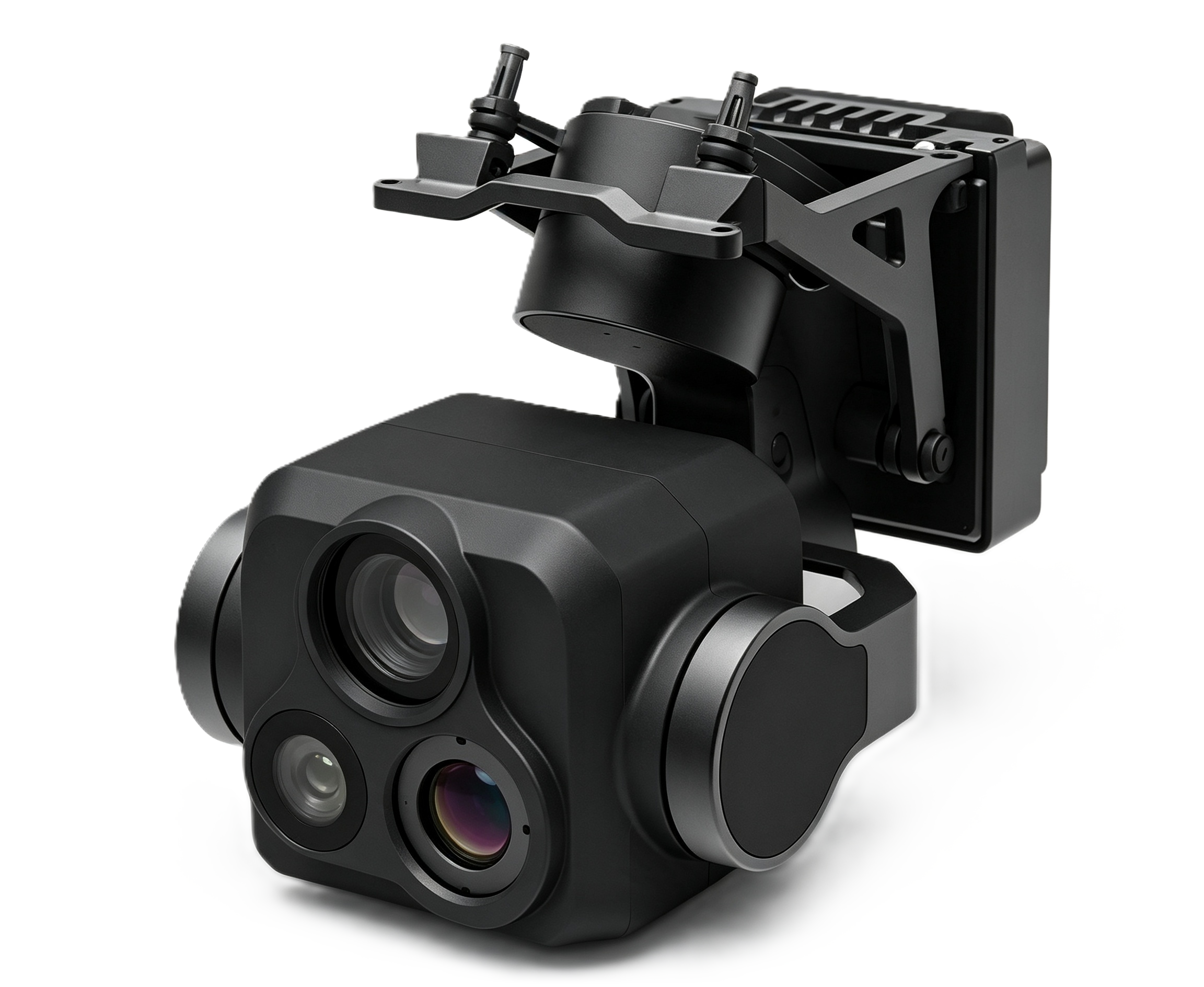

GIM-T3-D48 Tri-Spectral Gimbal

The GIM-T3-D48 is a lightweight tri-spectral gimbal built for UAV reconnaissance and inspection operations. Integrated with a 640×512 resolution thermal imaging module and 48MP visible-light cameras, it delivers reliable day-night multi-spectrum reconnaissance performance.

6T programmable AI computing power enhances intelligent target tracking and analysis under complex surroundings. Boasting up to 100x zoom capability and ultra 4K resolution, it supports long-range field observation missions. Compact 180g lightweight design enables fast installation and convenient integration for various industrial UAV tasks.

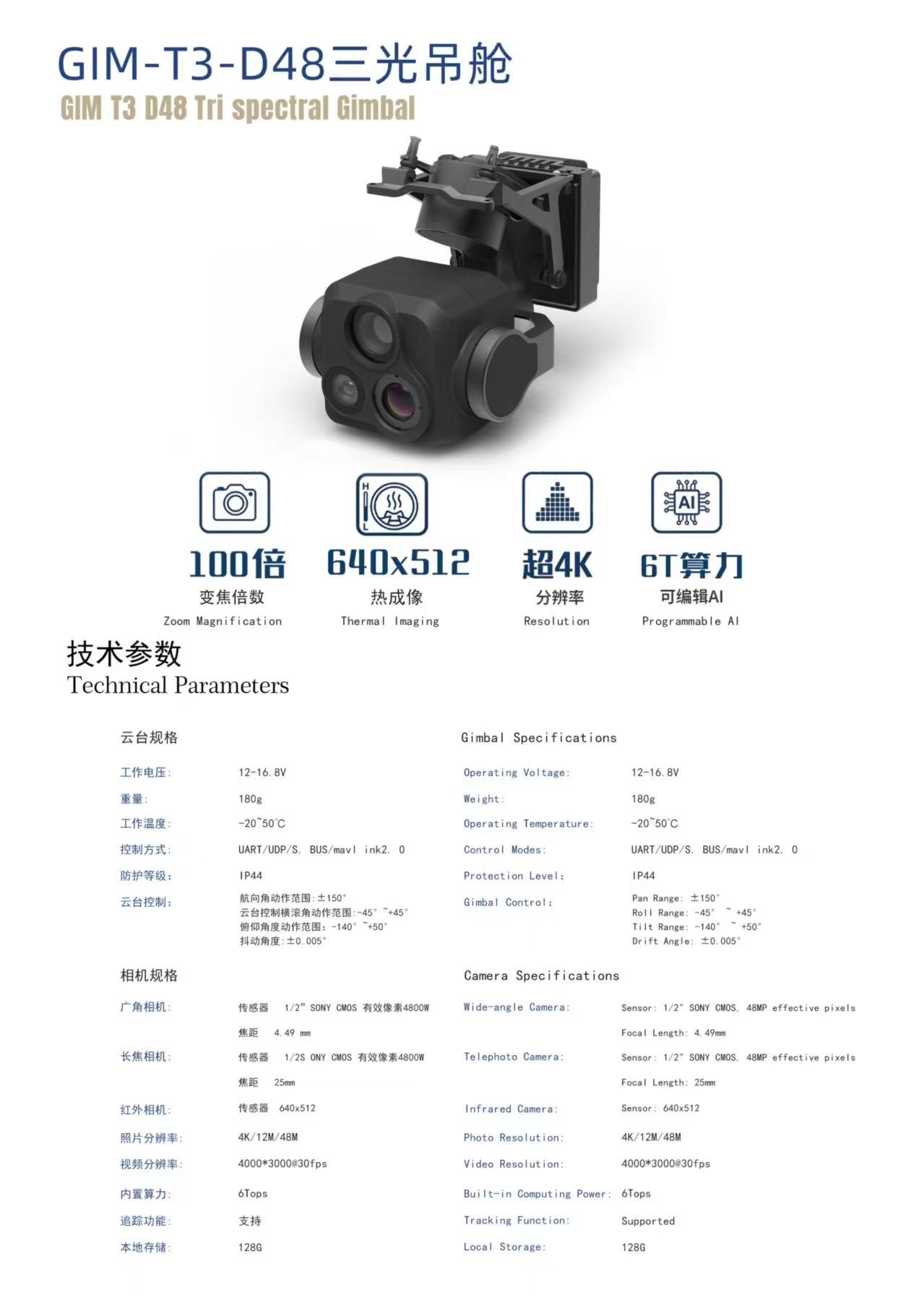

Technical Parameters

Weight: Approximately 180g
Operating Voltage: 12-16.8V
Operating Temperature: -20℃ ~ 50℃
Control Modes: UART, UDP, S.BUS, MAVlink, MAVlink2.0
Protection Level: IP44
Pan Range: ±150°
Roll Range: -45° ~ +45°
Tilt Range: -140° ~ +50°
Drift Angle: ≤0.005°
Wide-angle Camera: 1/2" SONY CMOS, 48MP effective pixels, 4.49mm focal length
Telephoto Camera: 1/2" SONY CMOS, 48MP effective pixels, 25mm focal length
Infrared Camera: 640×512 resolution
Photo Resolution: 4K /12M /48M
Video Resolution: 4000×3000@30fps
Built-in Computing Power: 6Tops
Tracking Function: Supported
Local Storage: 128G
