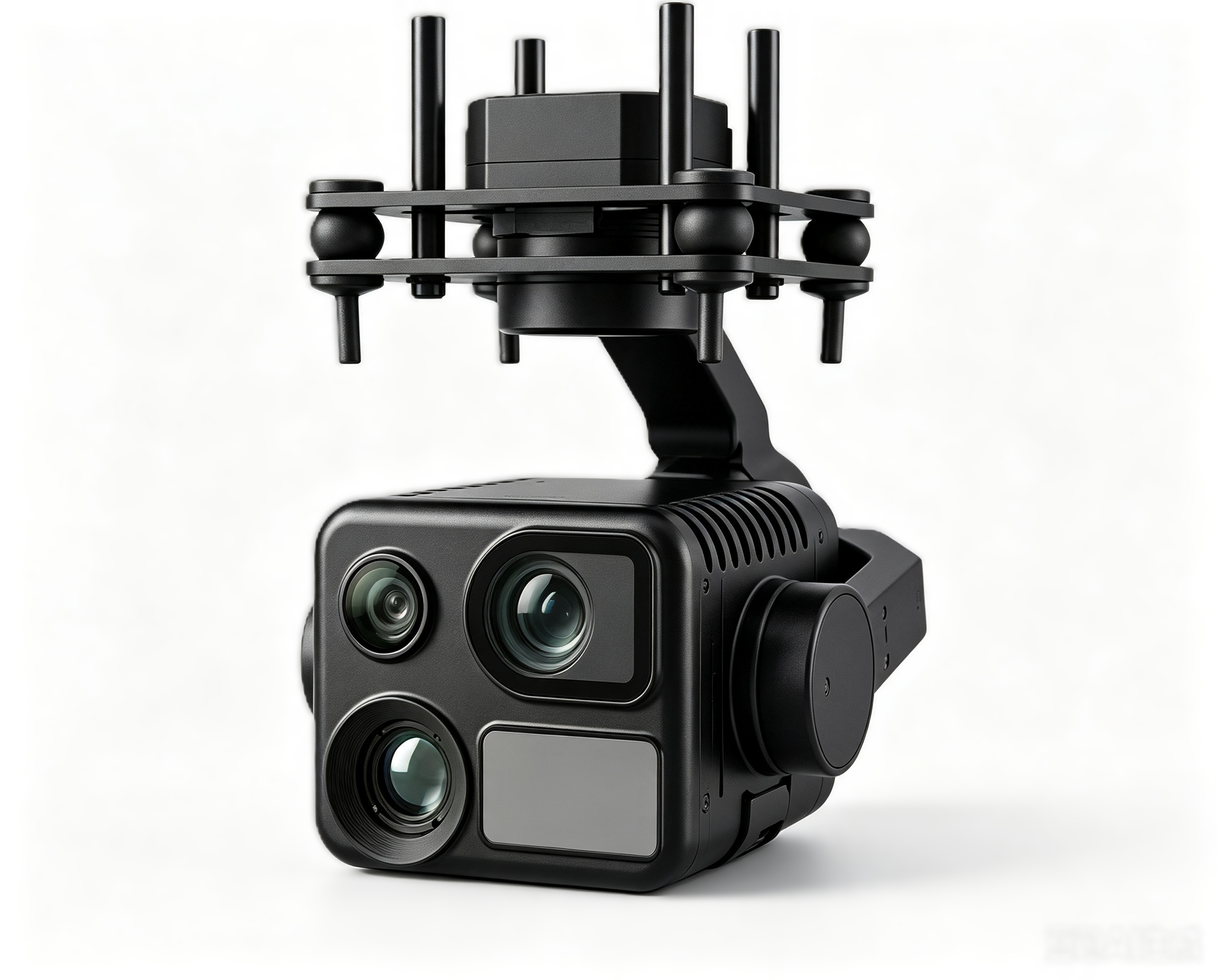

GIM T4 22x Quad Spectral Gimbal

The GIM-T4-22x is a lightweight quad-spectral gimbal built for industrial UAV reconnaissance and inspection operations. Integrated with a 640×512 resolution thermal imaging module, 48MP visible-light camera and 1500m laser rangefinder, it delivers reliable day-night multi-spectrum reconnaissance performance.

Multi-screen split display and built-in 6T programmable AI computing power support automatic target tracking and intelligent analysis. IP44 protection level ensures stable operation in harsh field environments. Lightweight 300g design allows easy installation on various industrial drones for long-duration field missions.

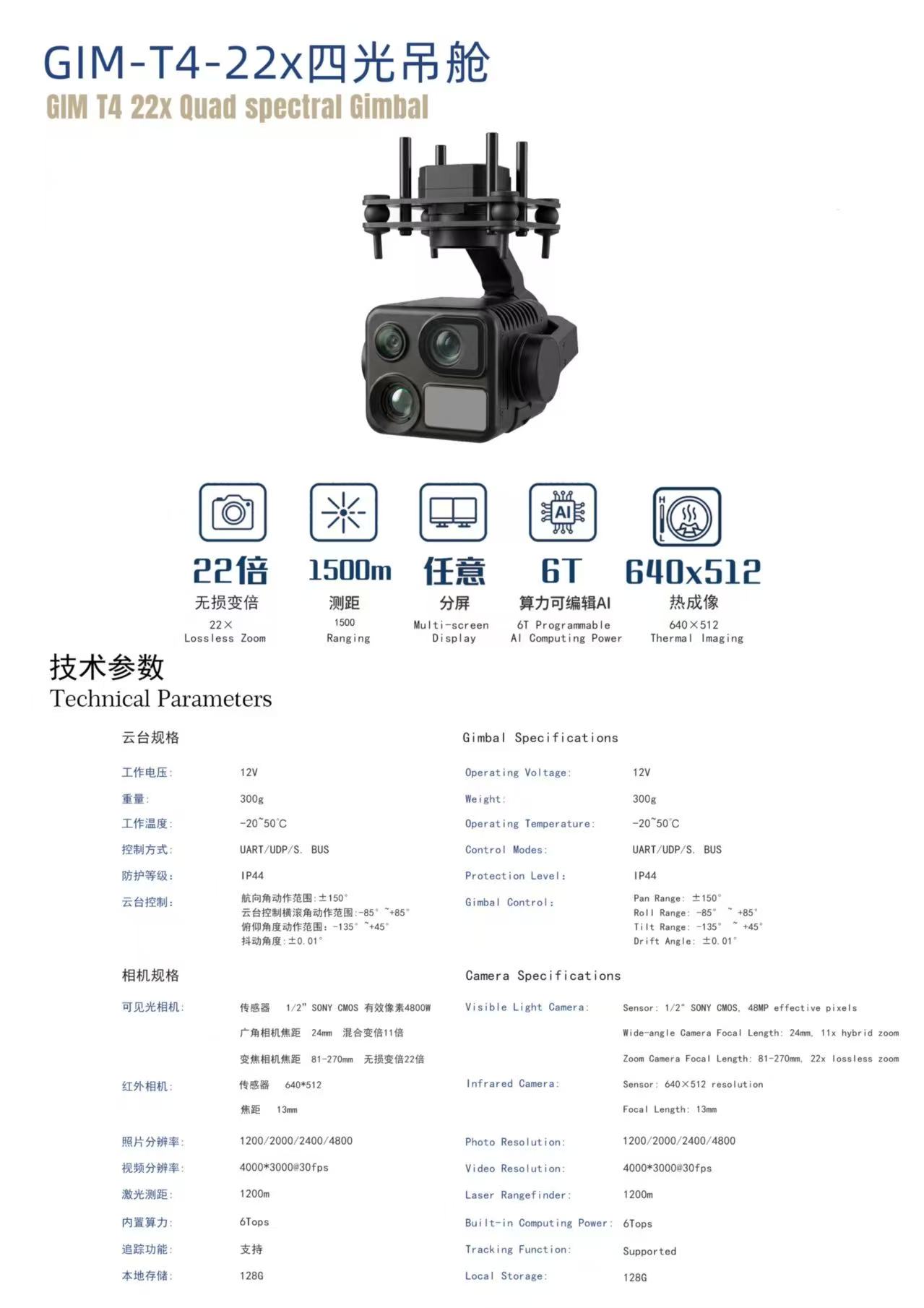

Technical Parameters

Weight: Approximately 300g
Operating Voltage: 12V
Operating Temperature: -20℃ ~ 50℃
Control Modes: UART, UDP, S.BUS
Protection Level: IP44
Pan Range: ±150°
Roll Range: -85° ~ +85°
Tilt Range: -135° ~ +45°
Drift Angle: ≤0.01°
Visible Light Camera: 1/2" SONY CMOS, 48MP effective pixels
Wide-angle Camera Focal Length: 24mm
Zoom Camera Focal Length: 81–270mm, 22x lossless zoom
Infrared Camera: 640×512 resolution, 13mm focal length
Laser Rangefinder: 1200m
Built-in Computing Power: 6Tops
Tracking Function: Supported
Local Storage: 128G
