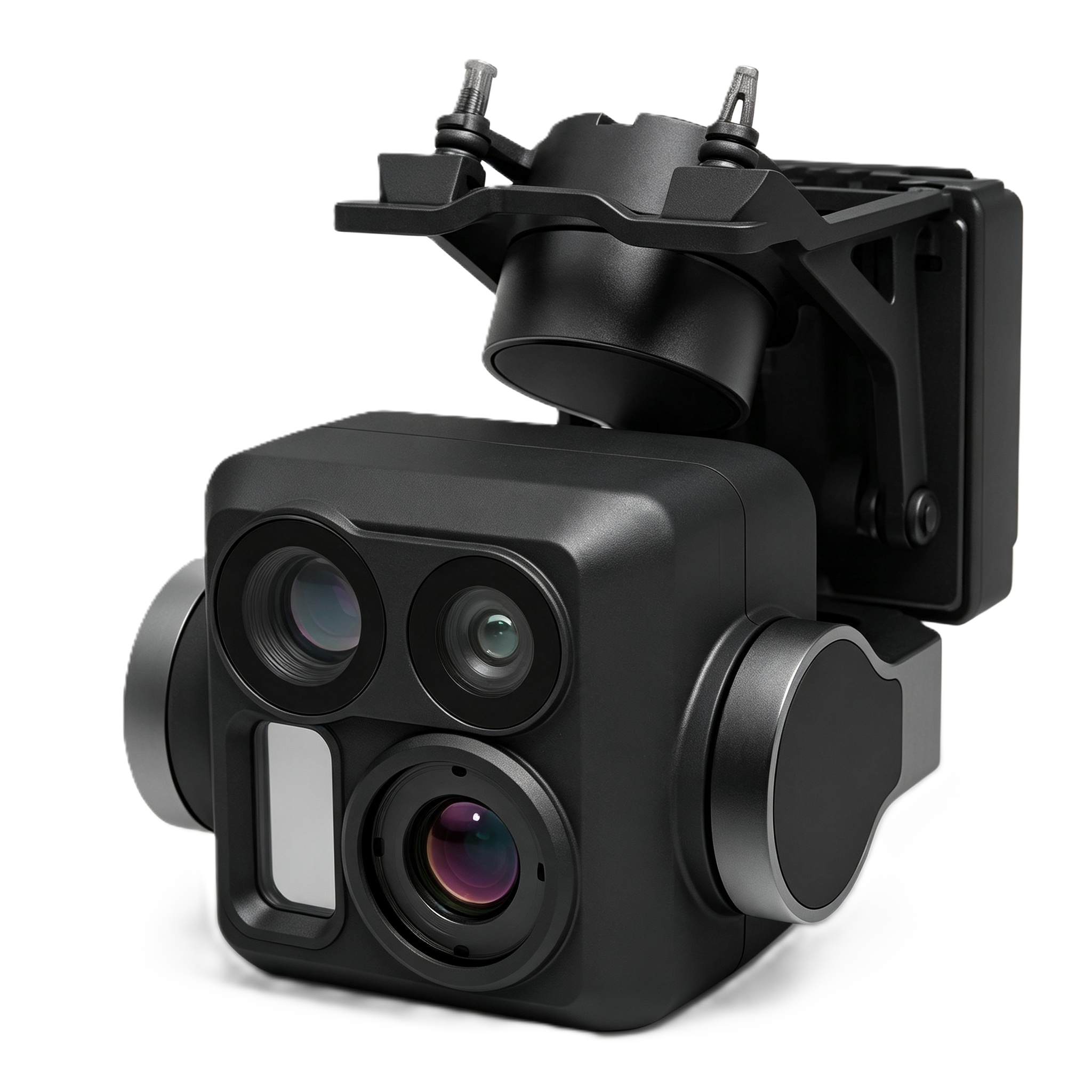

GIM-T4-D48 Quad-Spectral Gimbal

The GIM-T4-D48 is a lightweight quad-spectral gimbal built for UAV reconnaissance and inspection operations. Integrated with a 640×512 resolution thermal imaging module and 48MP visible-light cameras, it delivers reliable day-night multi-spectrum reconnaissance performance.

6T programmable AI computing power enhances intelligent target tracking and analysis under complex surroundings. Boasting up to 100x zoom capability and ultra 4K resolution, it supports long-range field observation missions. Compact 185g lightweight design enables fast installation and convenient integration for various industrial UAV tasks.

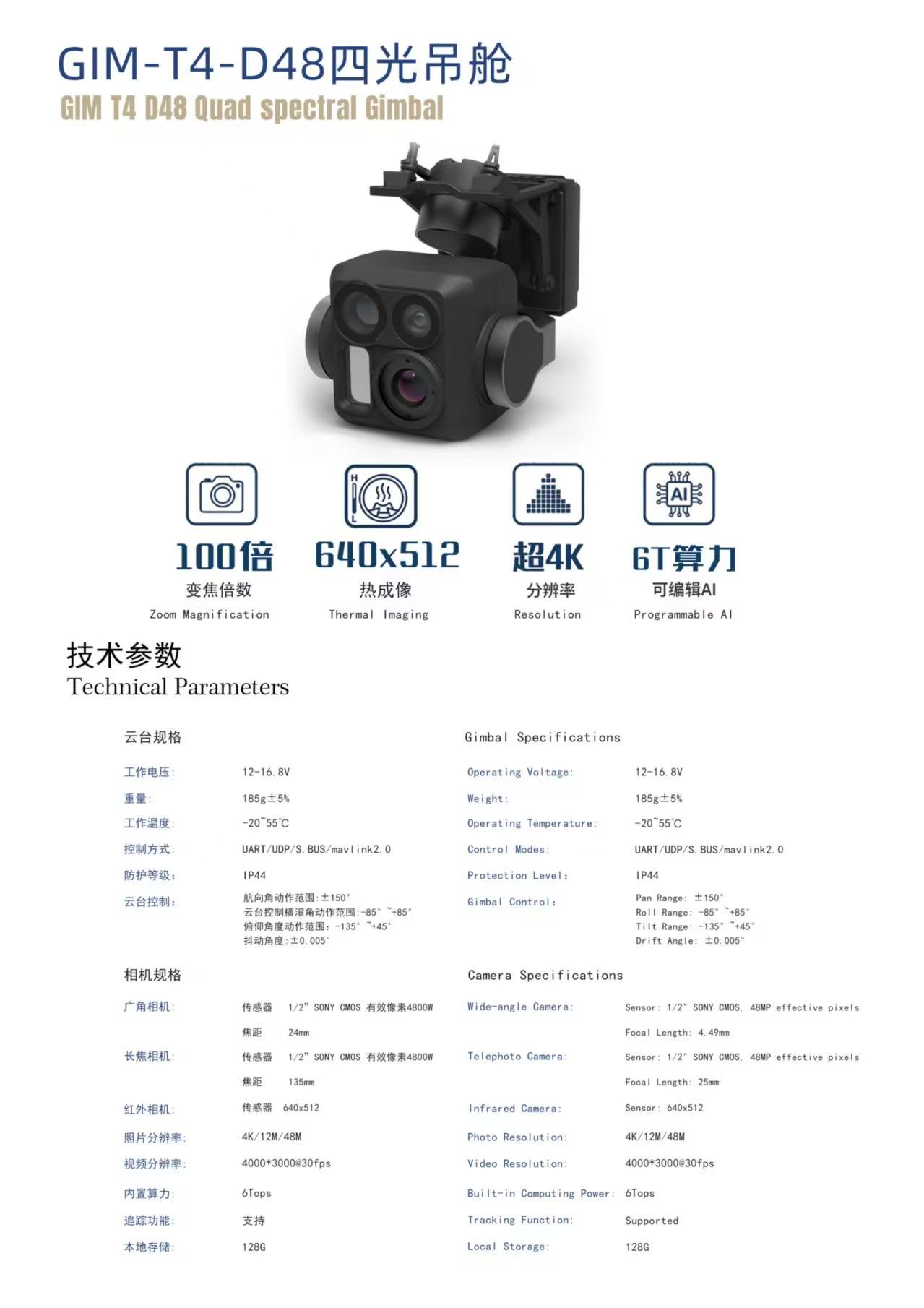

Technical Parameters

Weight: Approximately 185g
Operating Voltage: 12-16.8V
Operating Temperature: -20℃ ~ 55℃
Control Modes: UART, UDP, S.BUS, MAVlink2.0
Protection Level: IP44
Pan Range: ±150°
Roll Range: -85° ~ +85°
Tilt Range: -135° ~ +45°
Drift Angle: ≤0.005°
Wide-angle Camera: 1/2" SONY CMOS, 48MP effective pixels, 24mm focal length
Telephoto Camera: 1/2" SONY CMOS, 48MP effective pixels, 135mm focal length
Infrared Camera: 640×512 resolution
Photo Resolution: 4K /12M /48M
Video Resolution: 4000×3000@30fps
Built-in Computing Power: 6Tops
Tracking Function: Supported
Local Storage: 128G
