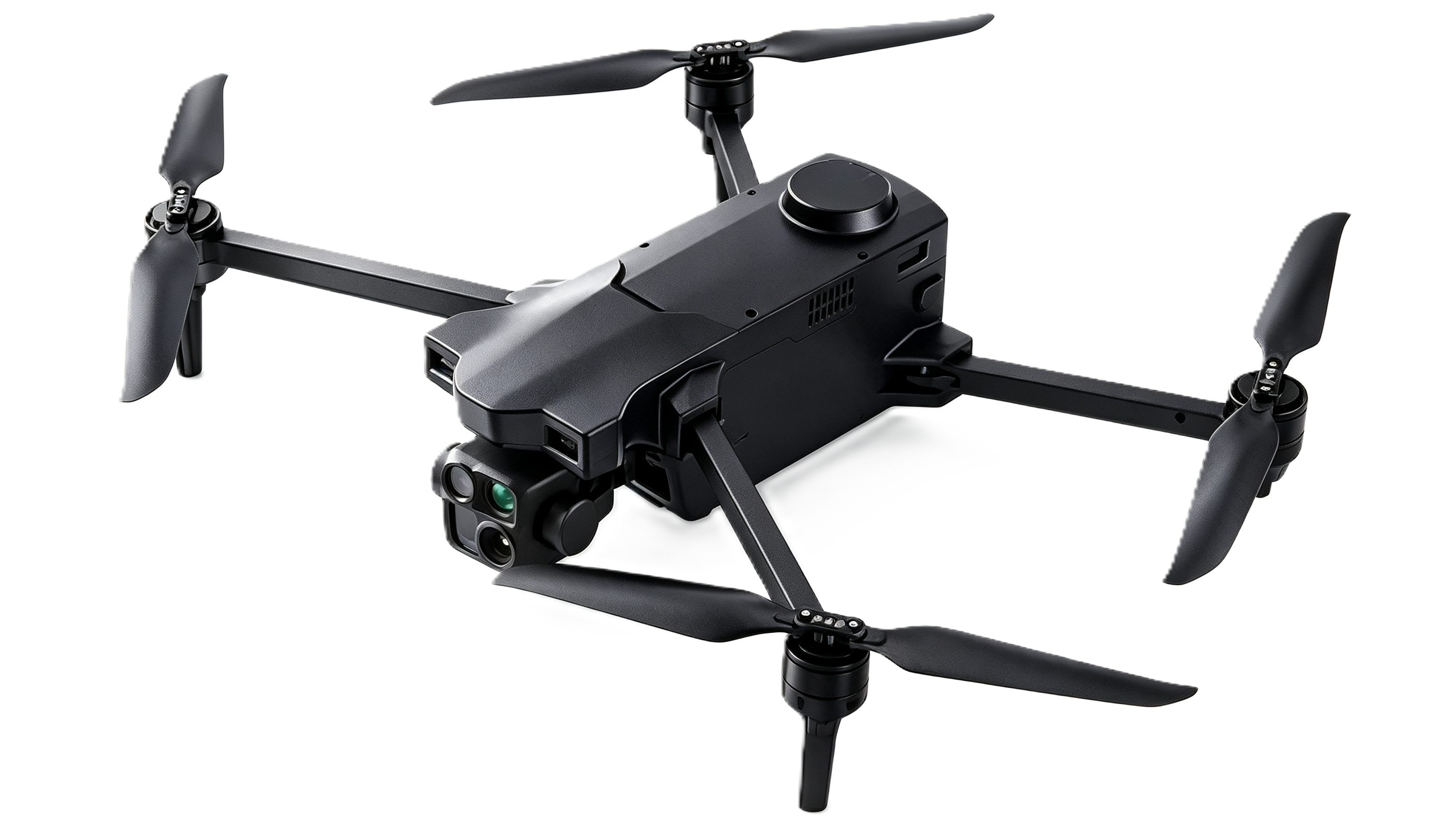

Spear‑3TM Quad‑Light Reconnaissance UAV

The Spear‑3TM Quad‑Light Reconnaissance UAV carries dual 48‑megapixel wide‑angle and telephoto cameras, paired with a 640×512 thermal imager and 5‑1200‑meter laser rangefinder. Multi‑mode perception enables long‑distance observation, temperature measurement and accurate target ranging.

Lightweight foldable airframe supports flexible outdoor deployment. It is widely applied in patrol monitoring, security surveillance and emergency response scenarios.

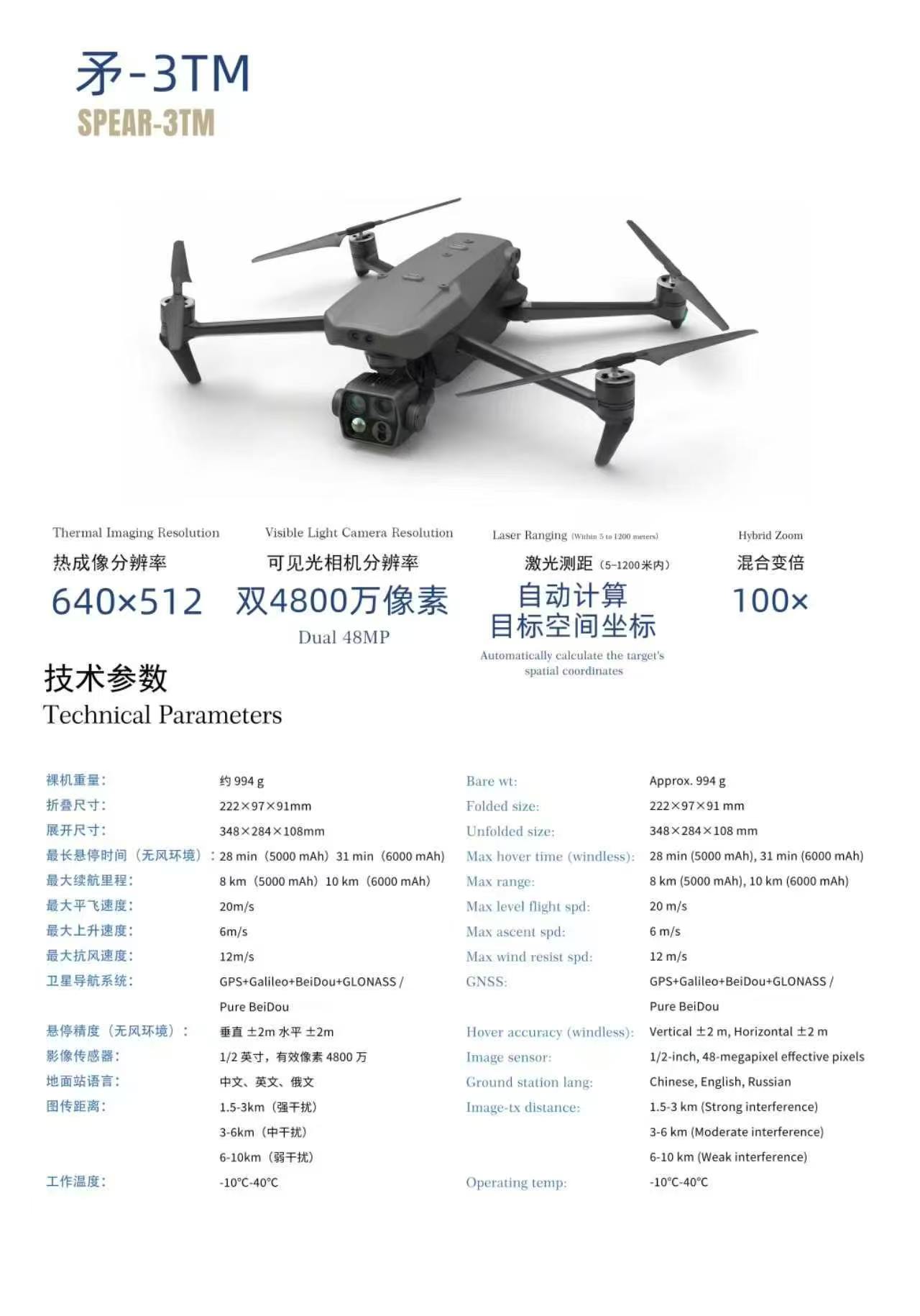

Technical Parameters

• Wide‑angle Camera: 48 Megapixels
• Telephoto Camera: 48 Megapixels
• Thermal Imaging Resolution: 640 × 512
• Laser Rangefinder: 5‑1200m
• Bare Weight: Approximately 994g
• Max Take‑off Weight: Approximately 1330g
• Max Hover Time: 28 minutes (5000mAh) / 31 minutes (6000mAh)
• Max Level Flight Speed: 20 m/s
• Max Ascent Speed: 6 m/s
• Folded Size: 222 × 97 × 91 mm
• Unfolded Size: 348 × 284 × 108 mm
• GNSS: GPS, Galileo, BeiDou, GLONASS
