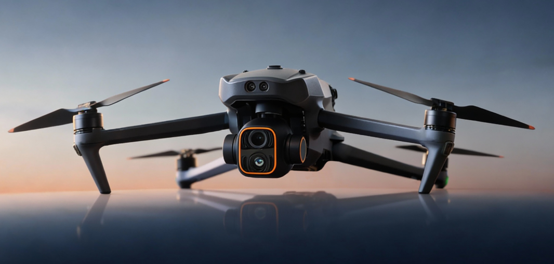

Spear‑3TA Dual‑light Reconnaissance UAV

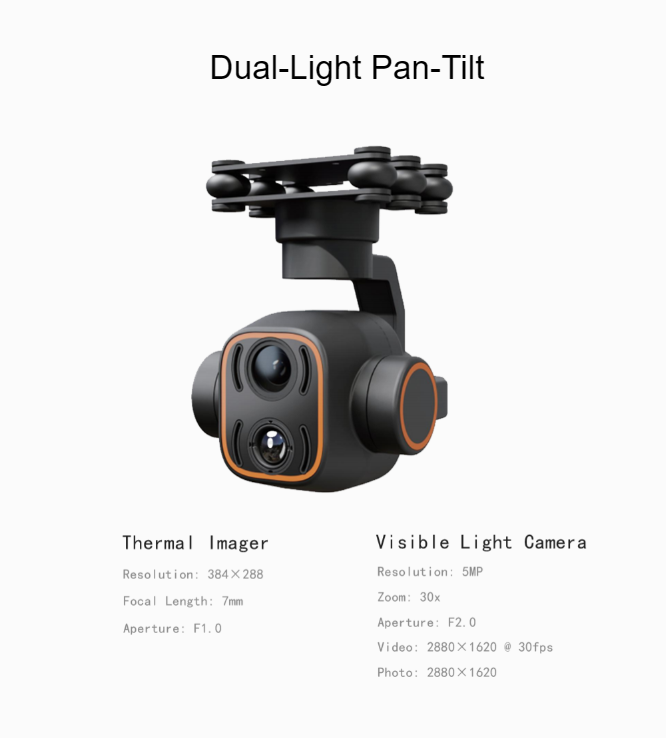

The Spear‑3TA is a compact reconnaissance UAV built for patrol, inspection and monitoring operations. Integrated with a 384×288 resolution thermal imaging module and 5MP visible‑light camera, it delivers reliable day‑night reconnaissance performance.

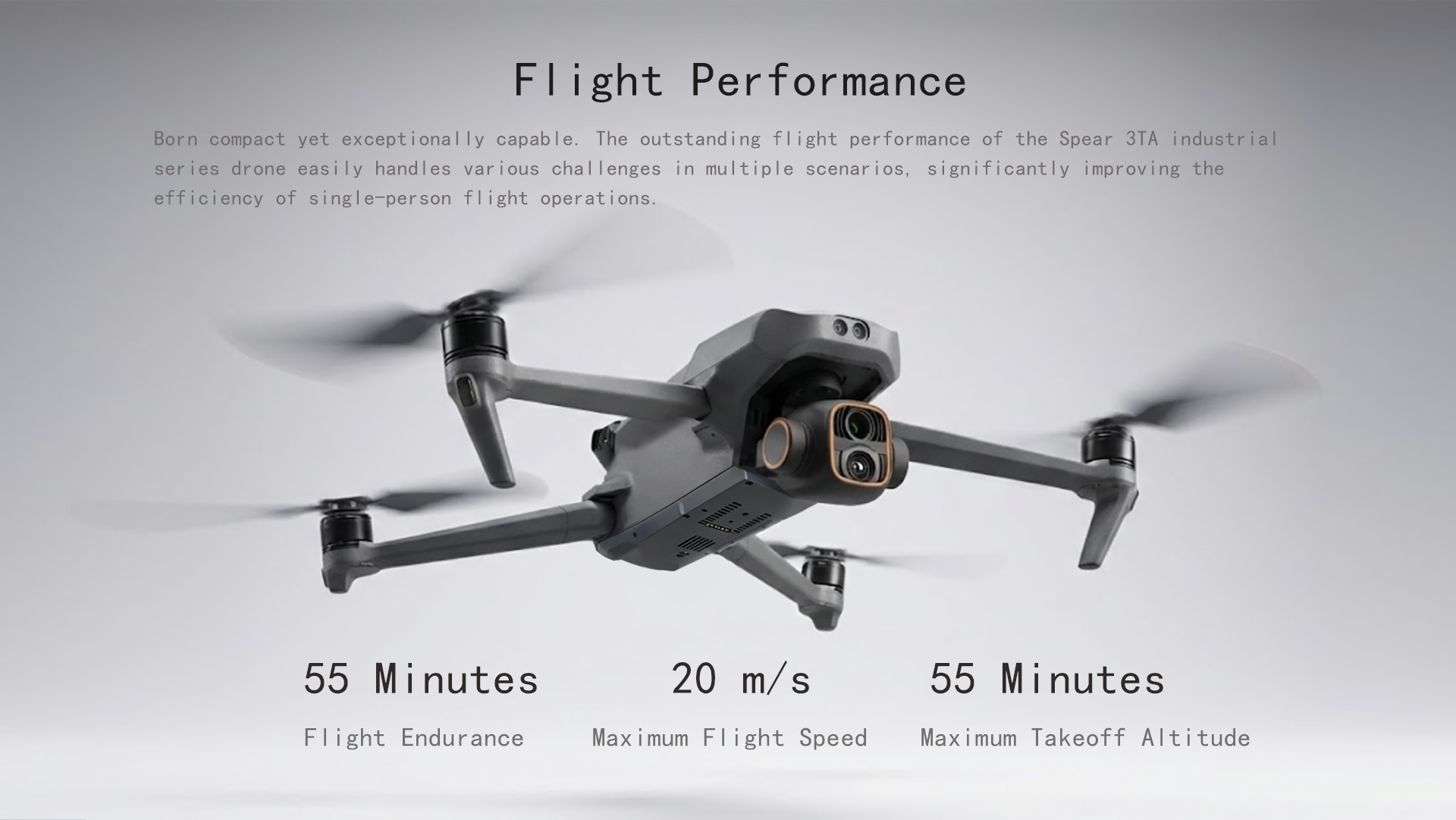

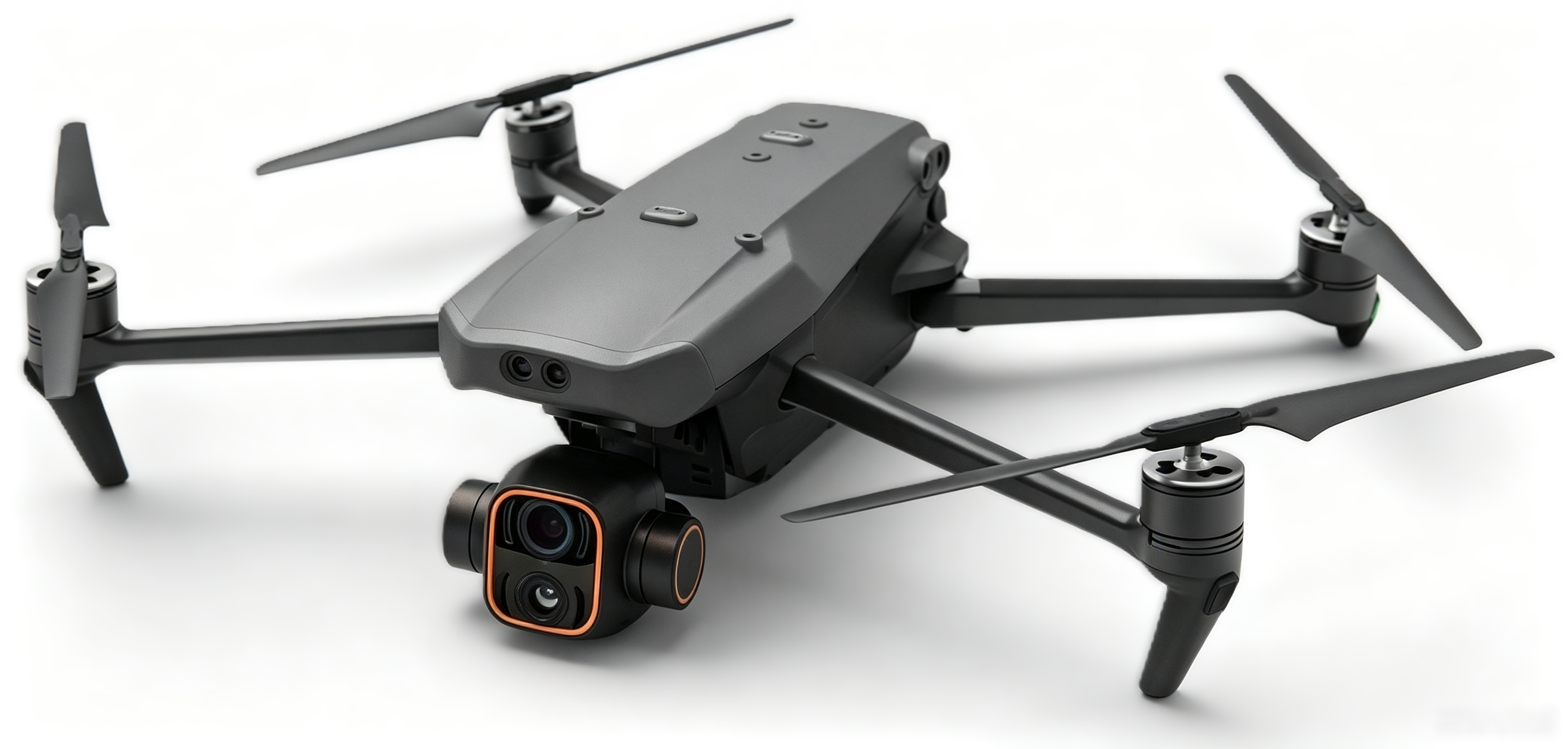

Laser obstacle avoidance together with optical‑flow positioning enhances flight stability and safety under complex surroundings. Boasting up to 40‑minute maximum hover time and 35km flight range, it supports long‑time field missions. Foldable airframe enables fast deployment and convenient transportation for outdoor tasks.

Technical Parameters

• Thermal Imaging Resolution: 384 × 288
• Visible‑light Camera: 5 Megapixels
• Perception System: Laser Obstacle Avoidance, Optical‑flow Positioning
• Bare Weight: Approximately 870g
• Max Hover Time: 35 minutes (5000mAh) / 40 minutes (6000mAh)
• Max Flight Range: 35 km
• Max Level Flight Speed: 20 m/s
• Max Ascent Speed: 6 m/s
• Folded Size: 222 × 97 × 91 mm
• Unfolded Size: 348 × 284 × 108 mm
• GNSS: GPS, Galileo, BeiDou, GLONASS
